Additional Info
MSR-2XRS-3USpec.pdf (768.2 KB)

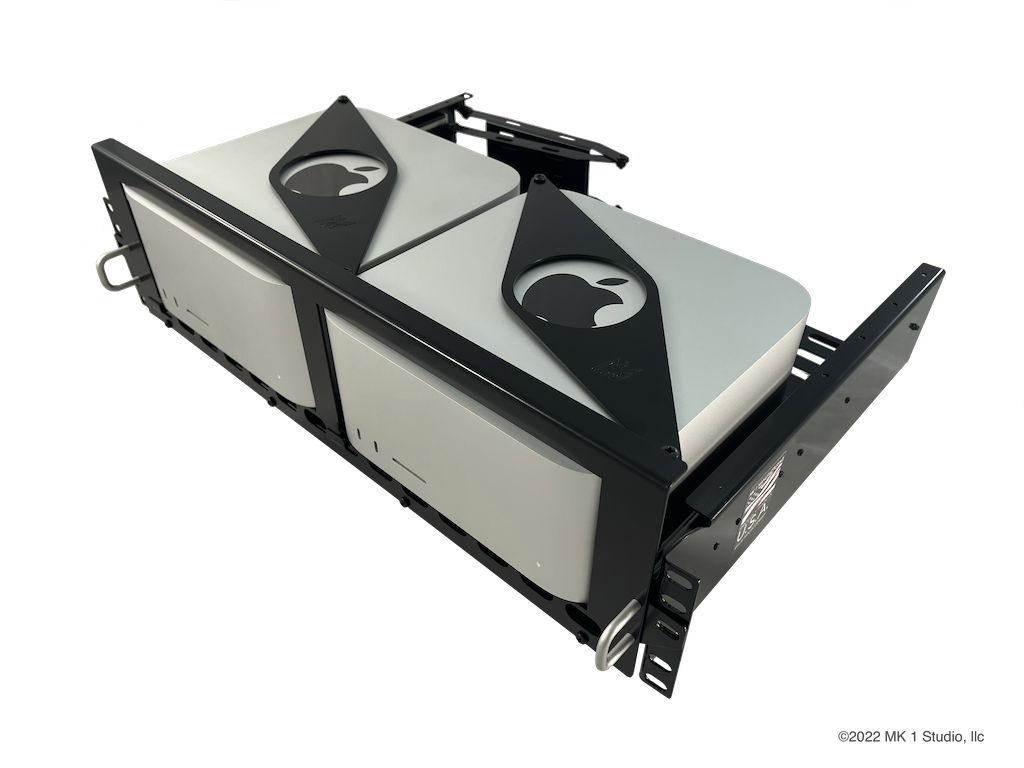

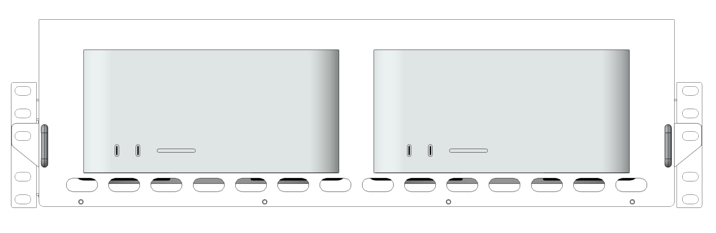

The MSR-2XRS-3U is a sliding rack mount shelf for Mac Studio that fits two Apple Mac Studio computers into 3U of standard 19-inch rack space. Built for recording studios, post-production environments, and data center deployments where front access and cable management are part of the daily workflow.

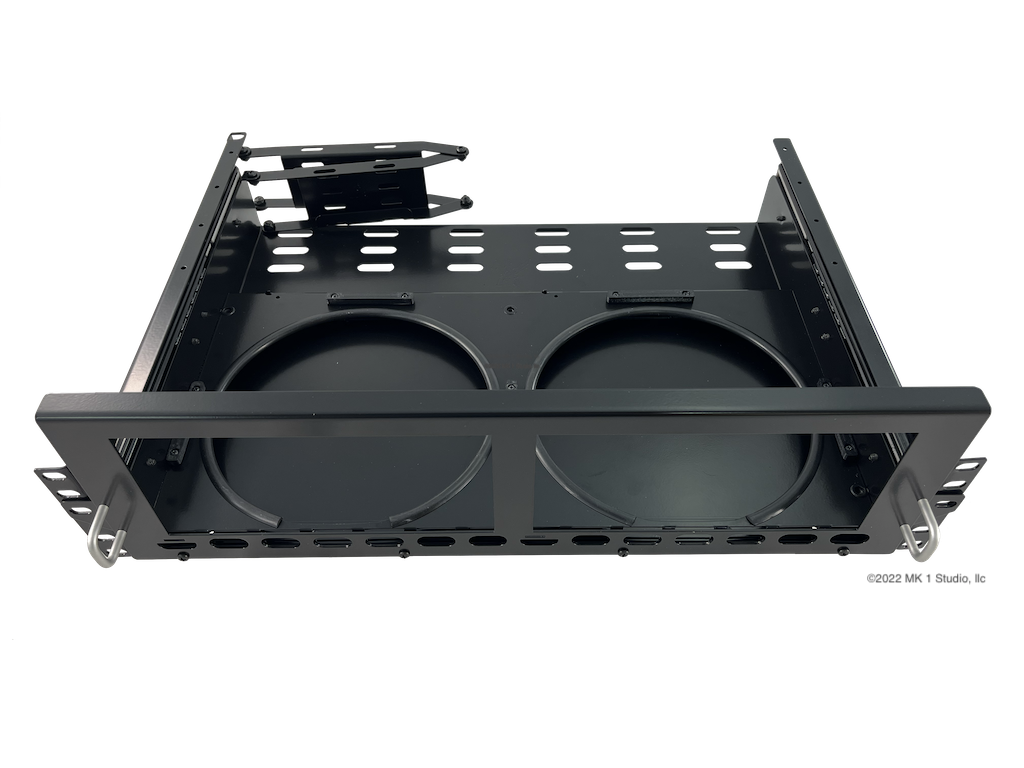

The 11" ball bearing slides extend smoothly with integrated handles, giving full front access to both units without removing the assembly from the rack. Cooling air is drawn from the front of the enclosure, keeping airflow aligned with the Mac Studio's thermal design. Cable management is built in, keeping connections organized inside the enclosure.

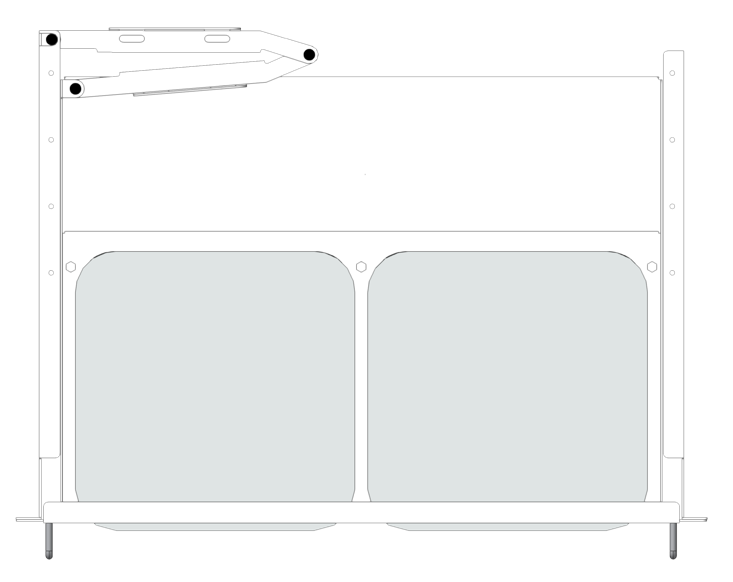

Optional front-panel USB 3.0 ports are available on both sides for direct connectivity without reaching behind the rack. Power toggles let you control each unit from the front panel. A rear brace anchors the sliding assembly to the back of the rack enclosure for added stability in permanent installations. Blank inserts are available for single-unit builds.
All 10-32 mounting hardware is included.
