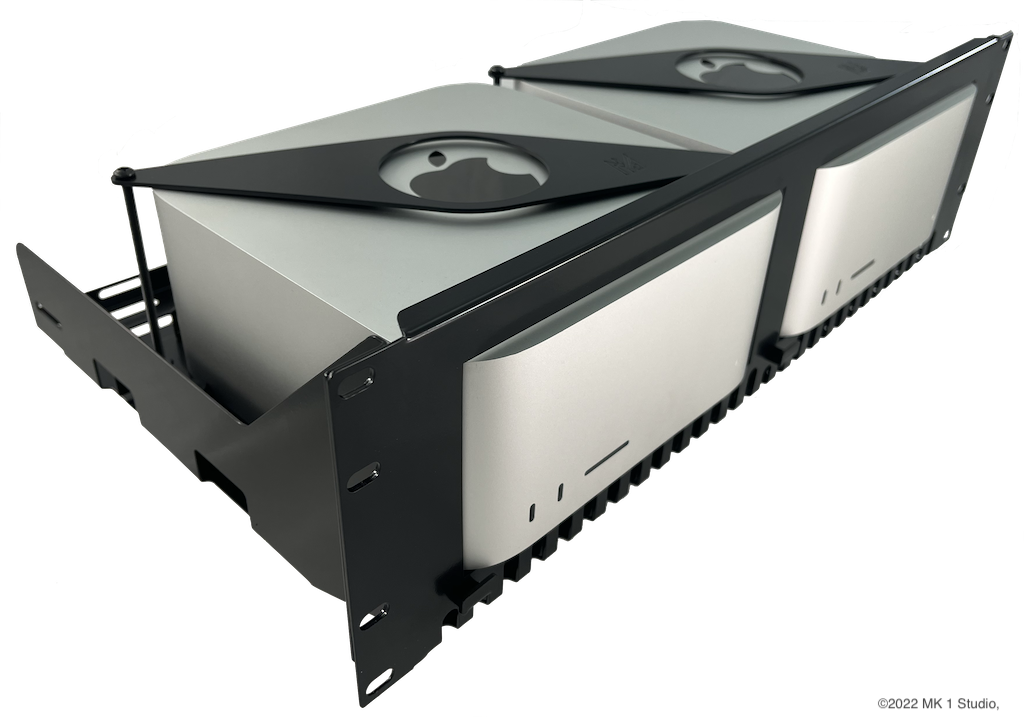

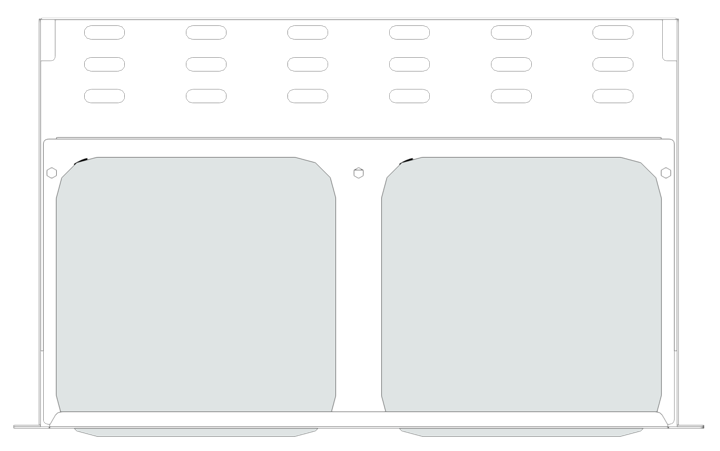

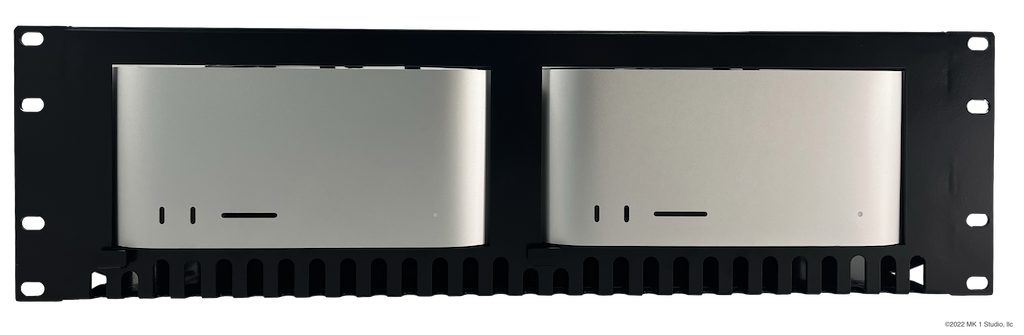

The MSR-2XFX-3U is a fixed 3U rack mount for two Apple Mac Studio computers in a standard 19-inch rack. Built for permanent installations in recording studios, post-production environments, and data centers where a low-profile, no-movement enclosure is the right fit. The fixed design keeps both units rigid and stable with no sliding mechanism, making it the lighter and more secure option for builds that stay in place or travel in a road case.
Cooling air is drawn from the front of the enclosure, keeping airflow aligned with the Mac Studio's thermal design. Optional front-panel USB ports give direct connectivity at the rack face without reaching behind the enclosure. Optional per-unit power toggles allow power control from the front of the rack. All 10-32 mounting hardware is included.
Specifications
○ Part: MSR-2XFX-3U
○ Capacity: 2 x Apple Mac Studio
○ Weight: 5 lbs
○ Rack Space: 3U
○ Airflow: Front-facing intake
○ Options: Front USB ports, per-unit power toggles, cage nuts (10-32)
