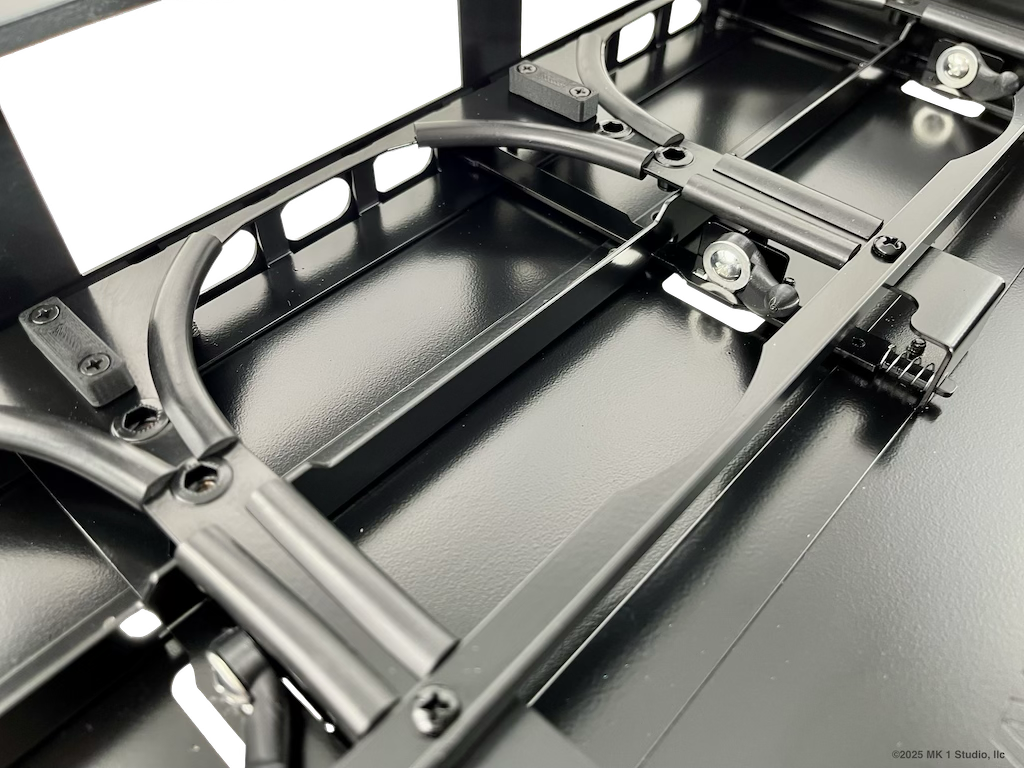

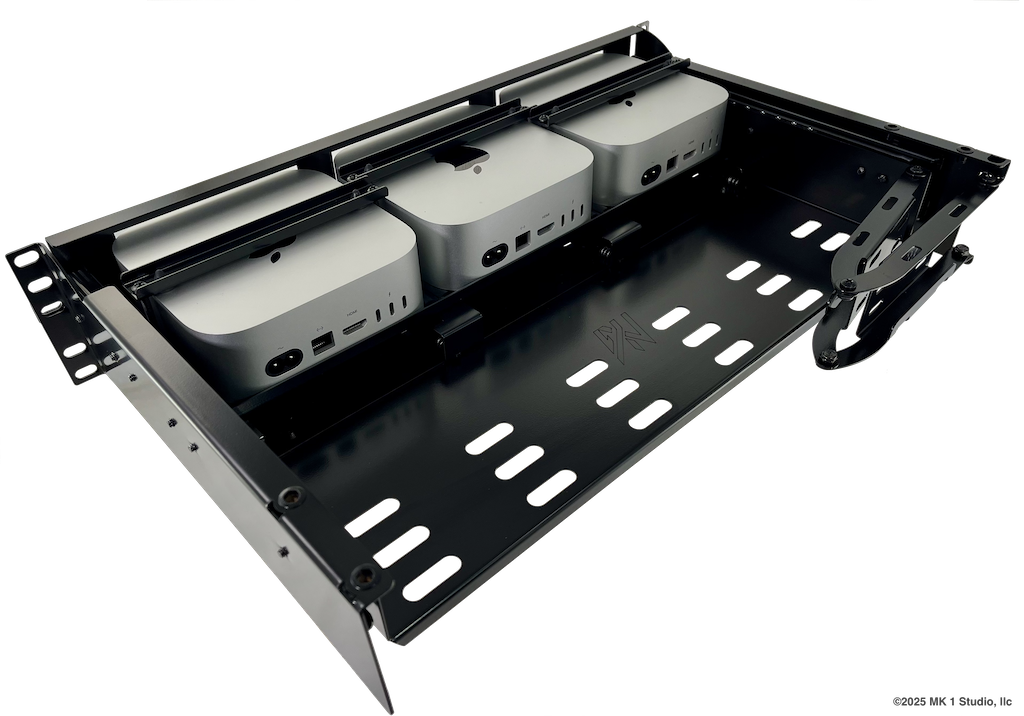

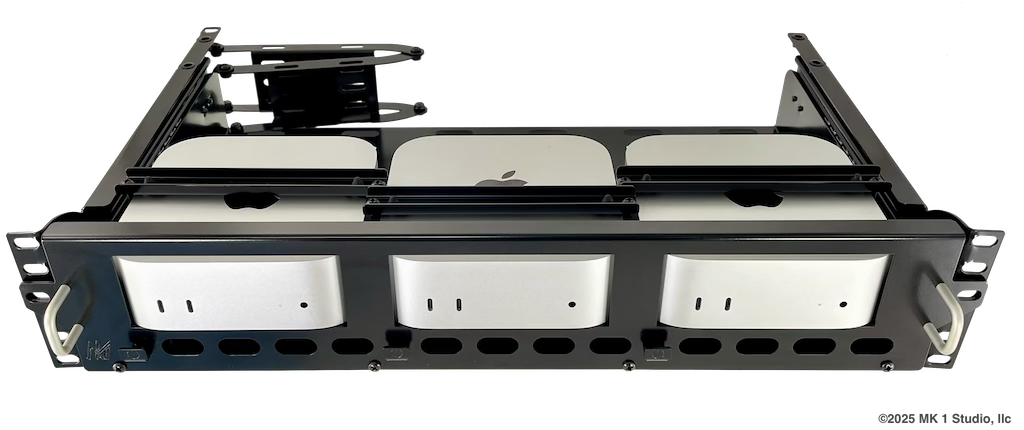

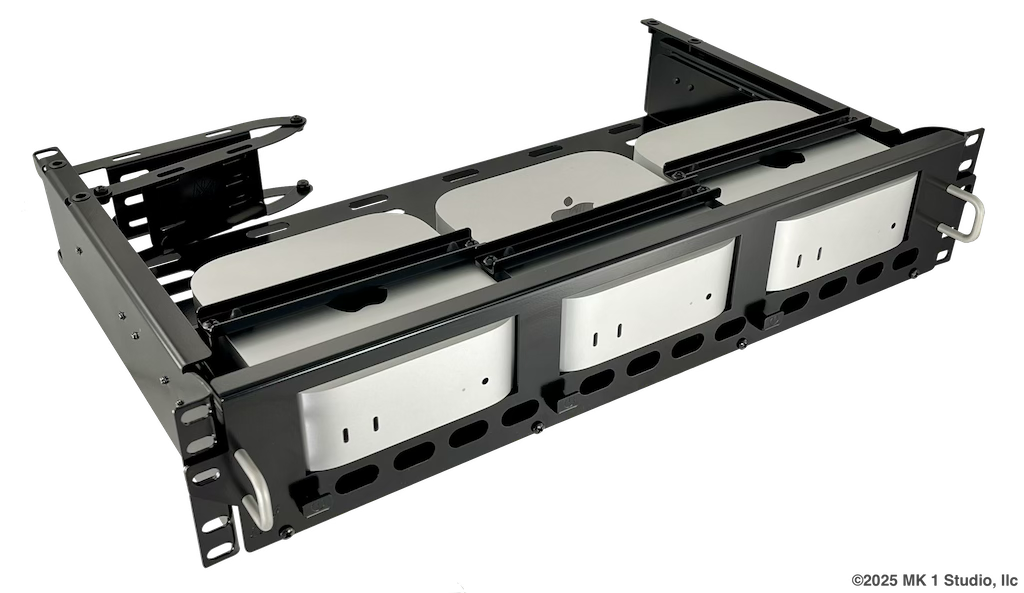

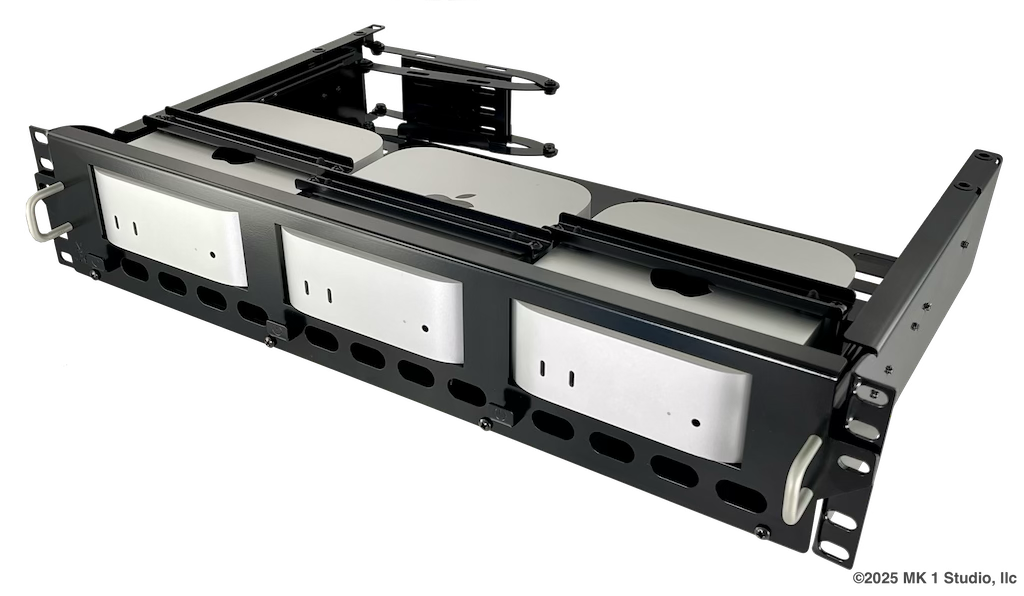

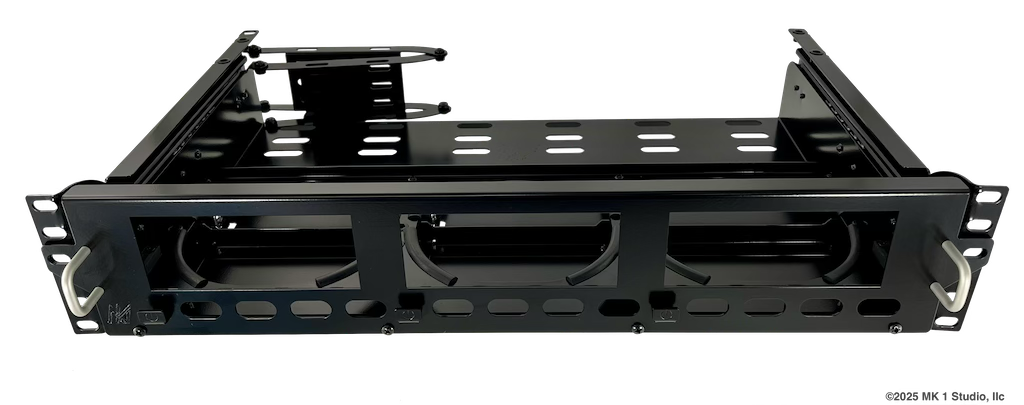

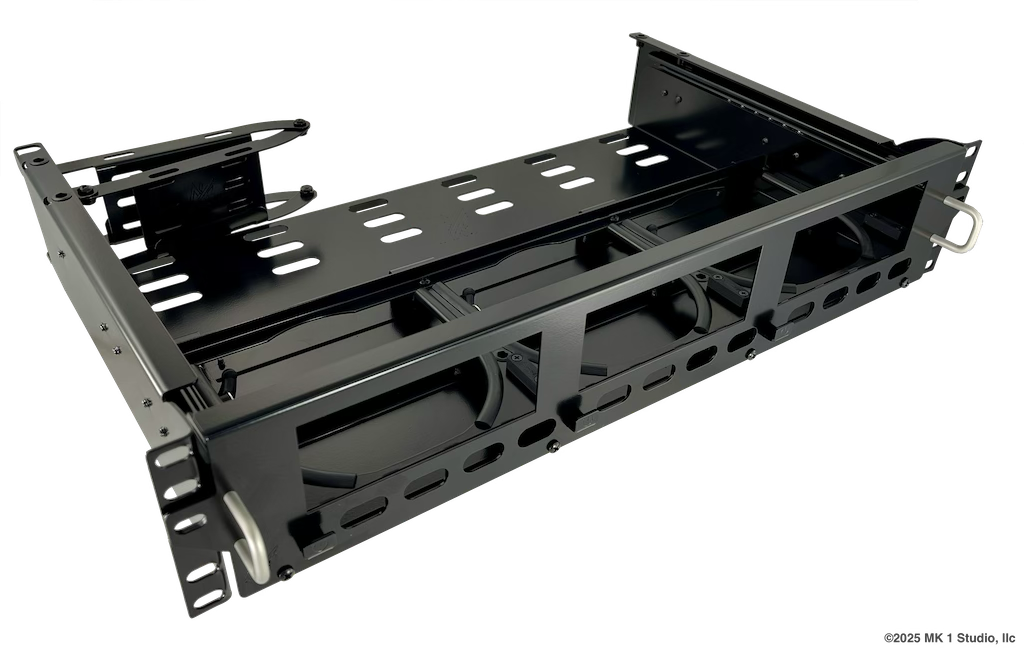

The MMR-3G3XRSH-2U is a sliding rack mount shelf for the 2024 Apple Mac Mini M4, fitting 3 units into 2U of standard 19-inch rack space. The 9.5" full ball bearing slide gives complete front access to all three units without removing the assembly from the rack. Rubber grommets and padded top clamps secure each Mac Mini against shifting, while the center divider separates incoming cool air from warm exhaust to keep thermals consistent undersustained load. Designed for the M4 model only. Not compatible with M2 or earlier unibody Mac Minis.

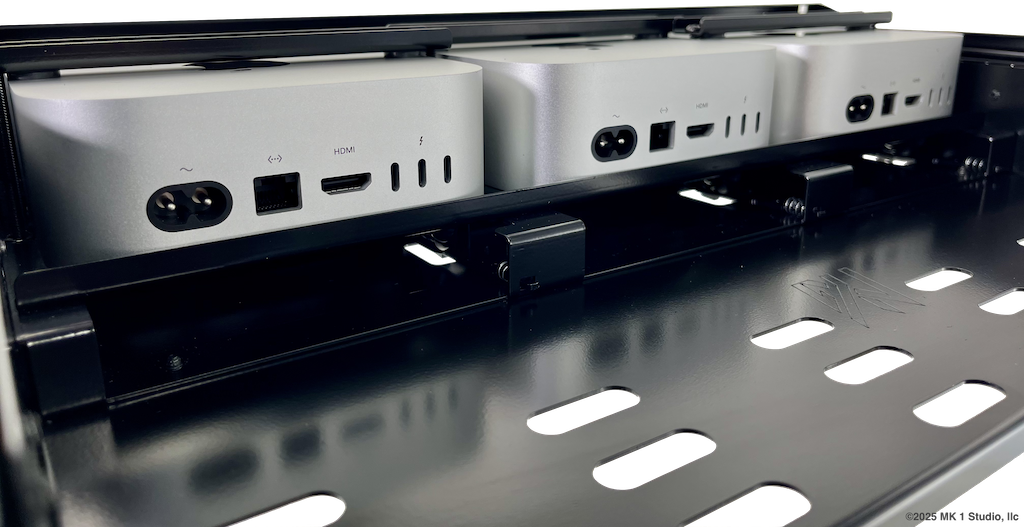

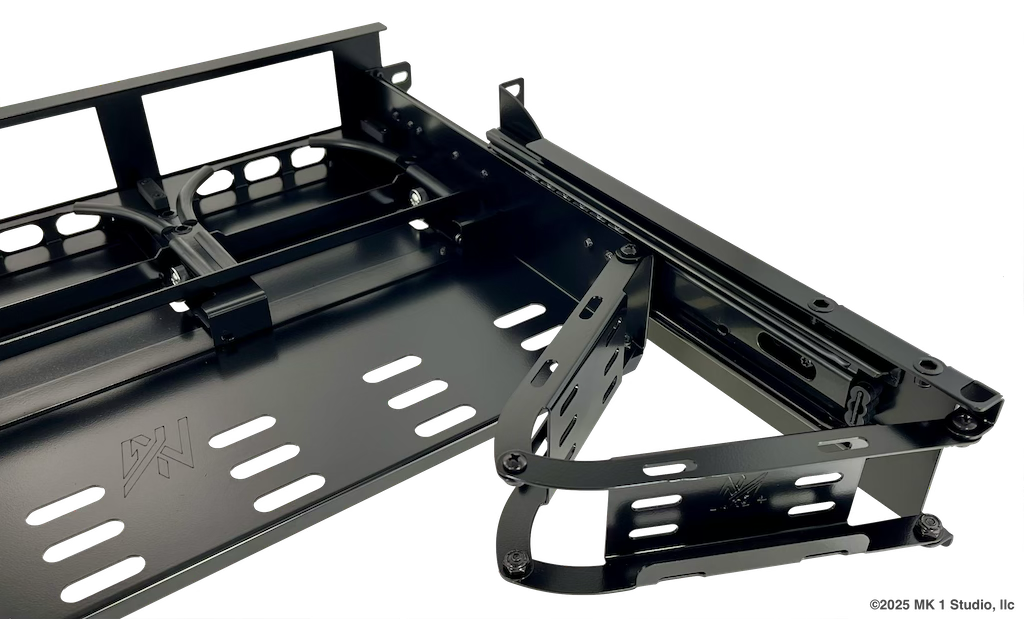

Optional per-bay power toggles give front-of-rack power control to each unit individually. A rear brace is available to anchor the slide to the back of the enclosure, with a 35" standard reach and a longer kit available for deeper racks. Integrated cable management and rear cabling slots keep connections organized inside the shelf. Thumb screws and 10-32 rack screws included.
Specifications
○ Part: MMR-3G3XRSH-2U
○ Capacity: 3 x Apple Mac Mini M4 (5" x 5" x 2")
○ Weight: 7.93 lbs (3.6kg)
○ Rack Space: 2U
○ Slide Length: 9.5" (241.3mm)
○ Enclosure Width: 19.000" (482.6mm)
○ Enclosure Depth: 12.721" (323.1mm)
○ Options: Per-bay power button toggles, rear brace (35" standard, longer kit available), cage nuts (8x 10-32)
○ Packed Dimensions: 22" x 14" x 8" / ~15 lbs (6.8kg)
