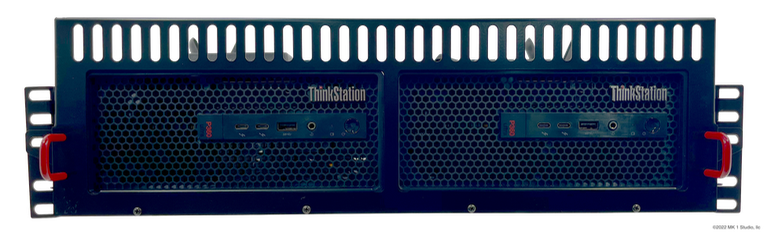

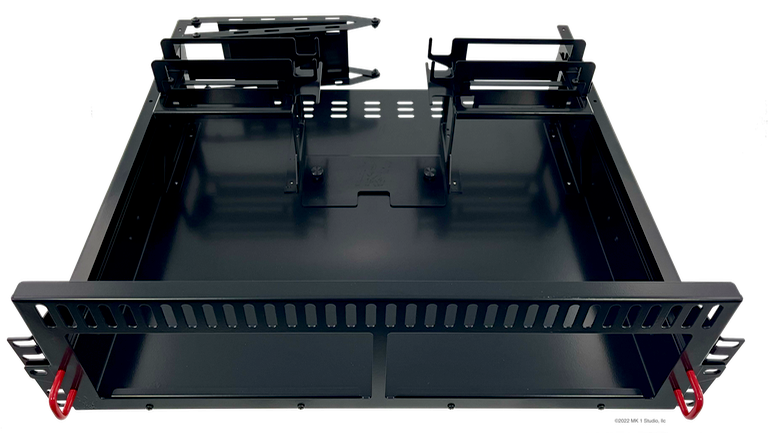

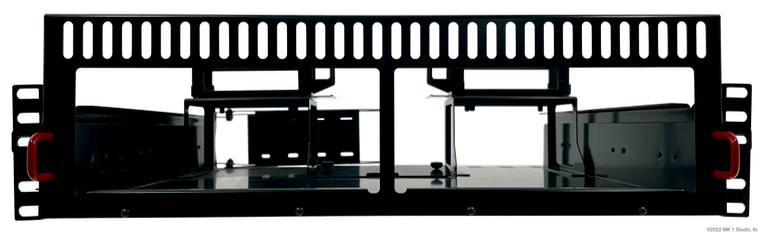

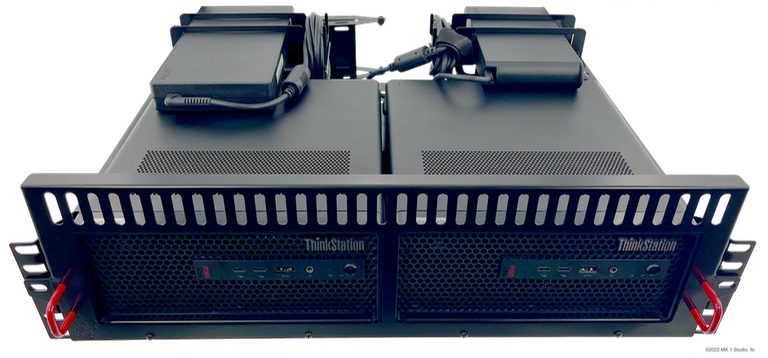

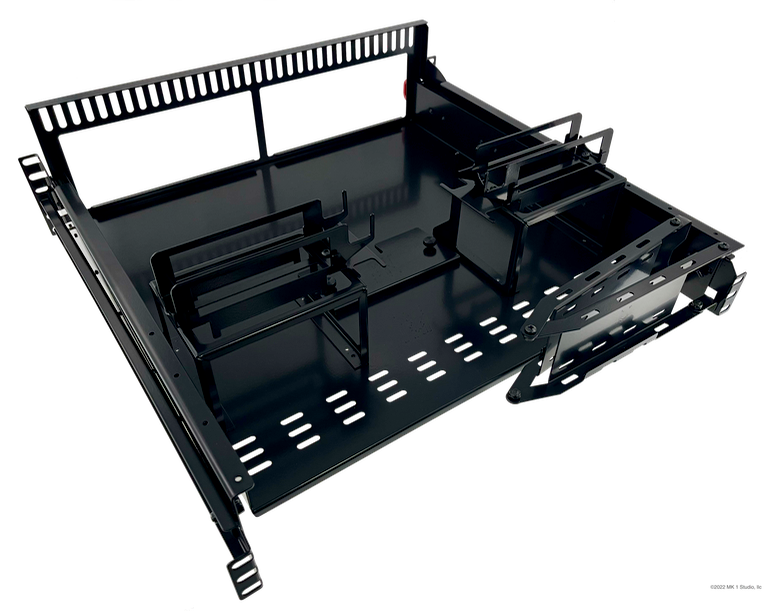

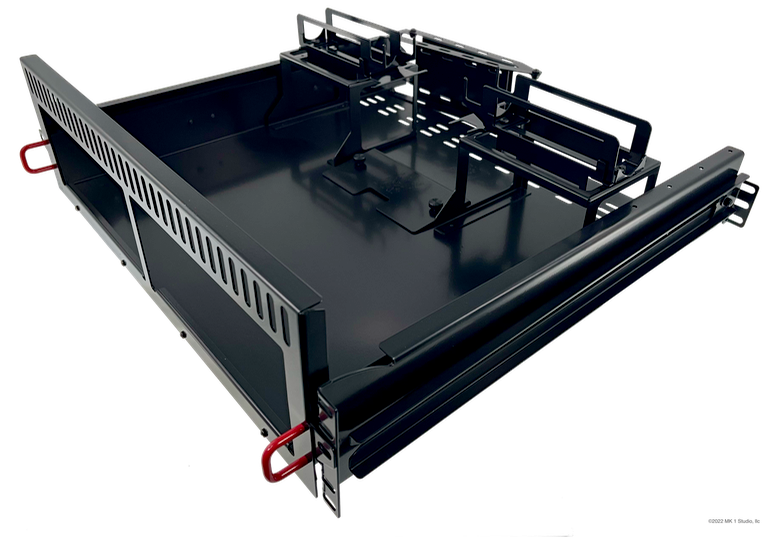

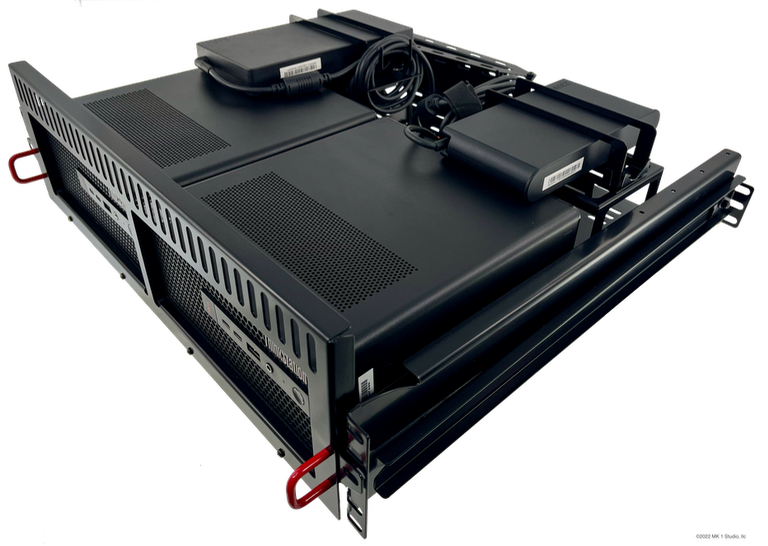

The TS-2XRS-Ultra is a sliding Lenovo ThinkStation rack mount for two ThinkStation Ultra SFF workstations in 3U of standard 19-inch rack space. Built for data centers, enterprise deployments, and remote workstation environments where front access, cable organization, and power supply management all need to work together in a single enclosure.
Rear braces are included and support racks up to 32 inches deep. Longer brace kits are available for deeper enclosures. All 10-32 mounting hardware is included.
Specifications
○ Part: TS-2XRS-Ultra
○ Capacity: 2 x Lenovo ThinkStation Ultra (8.06"W x 3.56"H x 8.8"D)
○ Weight: 12 lbs 4 oz
○ Rack Space: 3U
○ Slide Length: 14.25"
○ Enclosure Width: 19.00"
○ Enclosure Height: 5.25"
○ Enclosure Depth: 19.044"
○ Rear Support: Included (up to 32" deep racks, longer kit available)

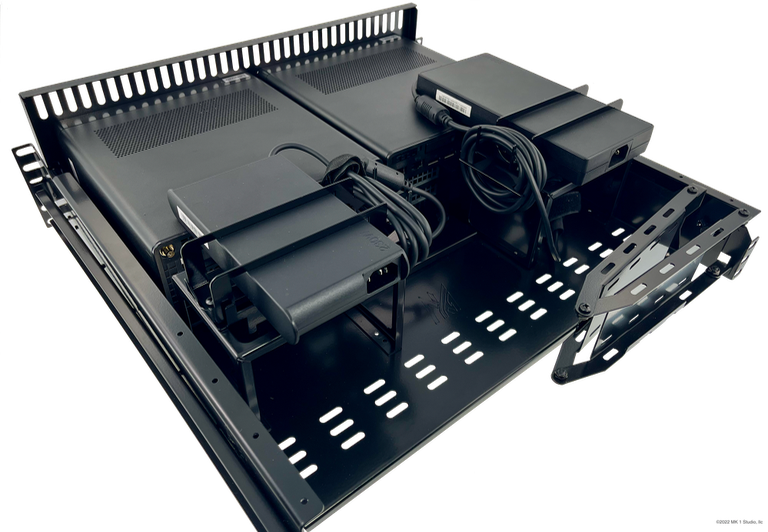

○ PSU Clamp Compatibility: 170W, 230W, 300W
○ Shipping Dimensions: 24" x 24" x 8" / ~18 lbs
○ Hardware: 10-32 mounting hardware included
